| Product Code | Ø I.D. | Ø I.D. | Ø O.D. | Total Thickness | Weight | Bending Radius | Working Pressure 1:3 23°C | Working Pressure 40°C | Working Pressure 60°C | Bursting Pressure 23°C | Coil Length |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PVCHSE106-01 | 3/4 inch | 19 mm | 26 mm | 3.5 mm | 350 g/m | 65 mm | 15 bar | 10 bar | 6 bar | 45 bar | 50 m |
| PVCHSE106-02 | 1 inch | 25 mm | 35 mm | 5 mm | 640 g/m | 100 mm | 15 bar | 10 bar | 6 bar | 45 bar | 50 m |

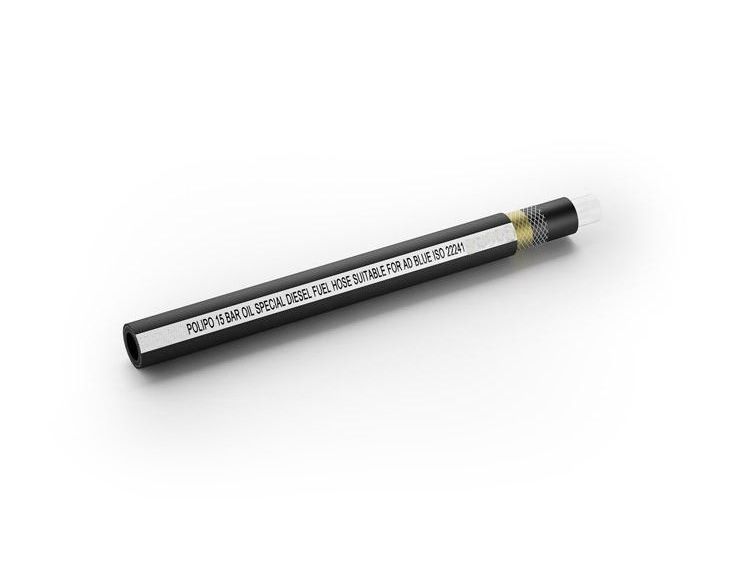

Polipo 15 Bar Oil
SKU: PVCHSE106
Soft PVC hose with Polyurethane (PU) under layer with a polyester yarn reinforcement and PU adhesive middle layer. Designed for use with the pressurised transfer of oil, diesel oil and bio diesel urea (ISO 22241).
| Product Code: | PVCHSE106 |
|---|---|
| Ø I.D.: | |
| Ø O.D.: | |
| Total Thickness: | |
| Weight: | |
| Bending Radius: | |
| Working Pressure 1:3 23°C: | 15 bar |
| Working Pressure 40°C: | 10 bar |
| Working Pressure 60°C: | 6 bar |
| Bursting Pressure 23°C: | 45 bar |
| Coil Length: | 50 m |
