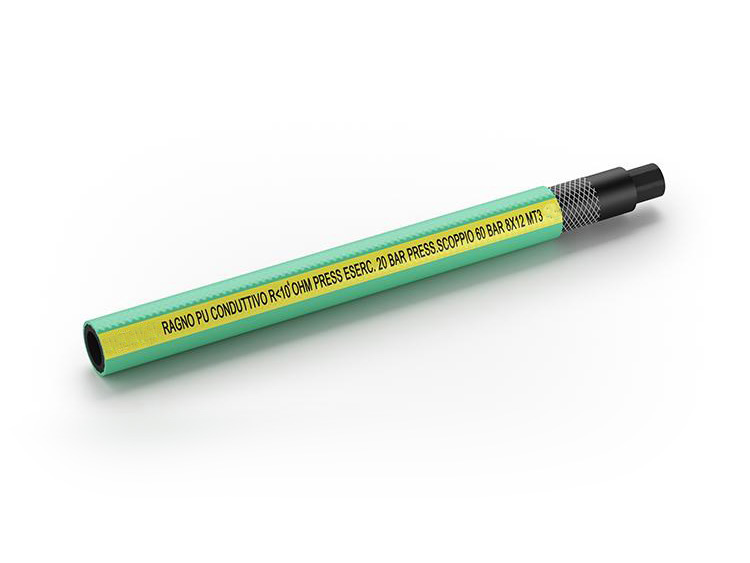

Ragno Pu Conduttivo

SKU: PVCHSE105

Anti-abrasive Polyurethane (PU) and thermoplastic rubber compound hose with a polyester yarn reinforcement. Designed for use; on machines with ATEX regulation, for general pneumatic tools, airbrushes and paint sprayers.

Product Code:	PVCHSE105
Ø I.D.:
Ø O.D.:
Total Thickness:
Weight:
Bending Radius:
Working Pressure 1:3 23°C:	20 bar
Working Pressure 40°C:	17 bar
Working Pressure 60°C:	15 bar
Bursting Pressure 23°C:	60 bar
Coil Length:

Product Code:

PVCHSE105

Ø I.D.:

Ø O.D.:

Total Thickness:

Weight:

Bending Radius:

Working Pressure 1:3 23°C:

20 bar

Working Pressure 40°C:

17 bar

Working Pressure 60°C:

15 bar

Bursting Pressure 23°C:

60 bar

Coil Length:

Product Code	Ø I.D.	Ø I.D.	Ø O.D.	Total Thickness	Weight	Bending Radius	Working Pressure 1:3 23°C	Working Pressure 40°C	Working Pressure 60°C	Bursting Pressure 23°C	Coil Length
PVCHSE105-01	1/4 inch	6 mm	10 mm	2 mm	70 g/m	20 mm	20 bar	17 bar	15 bar	60 bar	100 m
PVCHSE105-02	5/16 inch	8 mm	12 mm	2 mm	85 g/m	22 mm	20 bar	17 bar	15 bar	60 bar	60 m
PVCHSE105-03	3/8 inch	10 mm	15 mm	2.5 mm	130 g/m	38 mm	20 bar	17 bar	15 bar	60 bar	50 m
PVCHSE105-04	3/8 inch	10 mm	19 mm	4.5 mm	240 g/m	25 mm	20 bar	17 bar	15 bar	60 bar	30 m
PVCHSE105-05	1/2 inch	13 mm	19 mm	3 mm	195 g/m	65 mm	20 bar	17 bar	15 bar	60 bar	30 m
PVCHSE105-06	5/8 inch	16 mm	23 mm	3.5 mm	250 g/m	60 mm	20 bar	17 bar	15 bar	60 bar	25 m
