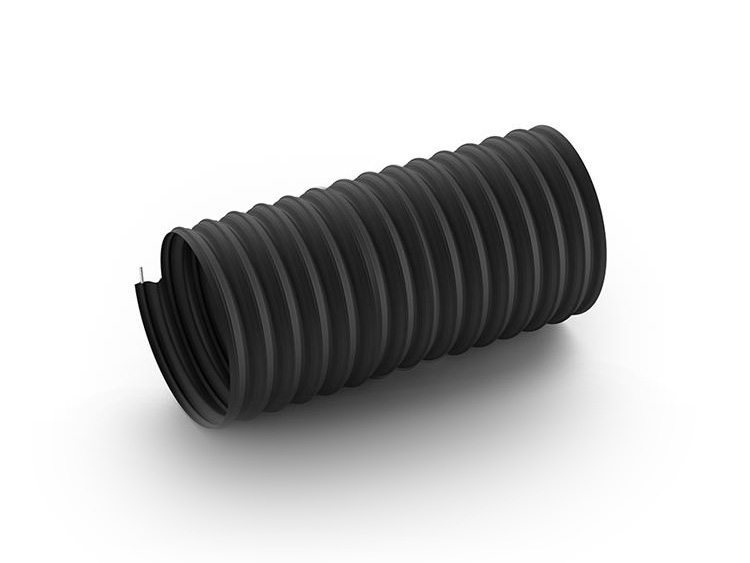

Superflex Calor

SKU: PVCHSE084

Thermoplastic rubber hose with galvanised steel spiral. Designed for both the suction and transportation of air and acid vapours.

Product Code:	PVCHSE084
Ø I.D.:
Ø O.D.:
Wall Thickness:
Weight:
Bending Radius:
Vacuum 23°c:
Spiral Pitch:
Spiral Direction:	left
Ø Spiral:
Coil Length:

Size Variants
Reviews (0)

Product Code	Ø I.D.	Ø I.D.	Ø O.D.	Wall Thickness	Weight	Bending Radius	Vacuum 23°c	Spiral Pitch	Spiral Direction	Ø Spiral	Coil Length
PVCHSE084-01	1 inch	25 mm	30 mm	0.7 mm	120 g/m	25 mm	3.5 m h2o	8 mm	left	0.8 mm	30 m
PVCHSE084-02		30 mm	35 mm	0.7 mm	140 g/m	30 mm	3.5 m h2o	8 mm	left	0.8 mm	30 m
PVCHSE084-03	1 1/4 inch	32 mm	37 mm	0.7 mm	145 g/m	32 mm	3.5 m h2o	8 mm	left	0.8 mm	30 m
PVCHSE084-04		35 mm	40 mm	0.7 mm	160 g/m	35 mm	3.5 m h2o	8 mm	left	0.8 mm	30 m
PVCHSE084-05	1 1/2 inch	38 mm	44 mm	0.7 mm	180 g/m	38 mm	3 m h2o	10 mm	left	1 mm	30 m
PVCHSE084-06		40 mm	46 mm	0.7 mm	200 g/m	40 mm	3 m h2o	10 mm	left	1 mm	30 m
PVCHSE084-07	1 3/4 inch	45 mm	51 mm	0.7 mm	230 g/m	45 mm	3 m h2o	10 mm	left	1 mm	30 m
PVCHSE084-08	2 inch	50 mm	56 mm	0.7 mm	280 g/m	50 mm	2.5 m h2o	12 mm	left	1.2 mm	30 m
PVCHSE084-09		60 mm	66 mm	0.7 mm	320 g/m	60 mm	2.5 m h2o	12 mm	left	1.2 mm	30 m
PVCHSE084-10	2 1/2 inch	63 mm	69 mm	0.7 mm	340 g/m	63 mm	2.5 m h2o	12 mm	left	1.2 mm	30 m
PVCHSE084-11		65 mm	71 mm	0.7 mm	360 g/m	65 mm	2.5 m h2o	12 mm	left	1.2 mm	30 m
PVCHSE084-12		70 mm	77 mm	0.7 mm	420 g/m	70 mm	2 m h2o	14 mm	left	1.4 mm	30 m
PVCHSE084-13		75 mm	82 mm	0.7 mm	440 g/m	75 mm	2 m h2o	14 mm	left	1.4 mm	30 m
PVCHSE084-14		80 mm	87 mm	0.7 mm	480 g/m	80 mm	1.7 m h2o	14 mm	left	1.4 mm	30 m
PVCHSE084-15		85 mm	92 mm	0.7 mm	520 g/m	85 mm	1.7 m h2o	14 mm	left	1.4 mm	30 m
PVCHSE084-16	3 1/2 inch	90 mm	97 mm	0.7 mm	520 g/m	90 mm	1.7 m h2o	14 mm	left	1.4 mm	30 m
PVCHSE084-17		100 mm	107 mm	0.7 mm	660 g/m	100 mm	1.4 m h2o	16 mm	left	1.6 mm	30 m
PVCHSE084-18		110 mm	117 mm	0.7 mm	720 g/m	110 mm	1.4 m h2o	16 mm	left	1.6 mm	30 m
PVCHSE084-19		120 mm	127 mm	0.7 mm	780 g/m	120 mm	1.2 m h2o	16 mm	left	1.6 mm	30 m
PVCHSE084-20		125 mm	132 mm	0.7 mm	800 g/m	125 mm	1.2 m h2o	16 mm	left	1.6 mm	30 m
PVCHSE084-21		130 mm	137 mm	0.7 mm	840 g/m	130 mm	1 m h2o	16 mm	left	1.6 mm	30 m
PVCHSE084-22		140 mm	147 mm	0.7 mm	900 g/m	140 mm	1 m h2o	16 mm	left	1.6 mm	30 m
PVCHSE084-23		150 mm	157 mm	0.7 mm	1100 g/m	150 mm	0.7 m h2o	18 mm	left	1.8 mm	30 m
PVCHSE084-24		160 mm	167 mm	0.7 mm	1160 g/m	160 mm	0.7 m h2o	18 mm	left	1.8 mm	30 m
PVCHSE084-25		170 mm	177 mm	0.7 mm	1240 g/m	170 mm	0.5 m h2o	18 mm	left	1.8 mm	30 m
PVCHSE084-26		180 mm	187 mm	0.7 mm	1300 g/m	180 mm	0.5 m h2o	18 mm	left	1.8 mm	30 m
PVCHSE084-27		200 mm	207 mm	0.7 mm	1440 g/m	200 mm	0.4 m h2o	18 mm	left	1.8 mm	30 m
PVCHSE084-28		220 mm	227 mm	0.7 mm	1600 g/m	220 mm	0.4 m h2o	18 mm	left	1.8 mm	15 m
PVCHSE084-29		250 mm	259 mm	0.8 mm	1850 g/m	250 mm	0.3 m h2o	22 mm	left	2 mm	15 m
PVCHSE084-30		300 mm	309 mm	0.8 mm	2300 g/m	300 mm	0.2 m h2o	22 mm	left	2 mm	15 m
