Name: Superflex Pu Kz Dx Conduttivo
SKU: PVCHSE080
Availability: InStock

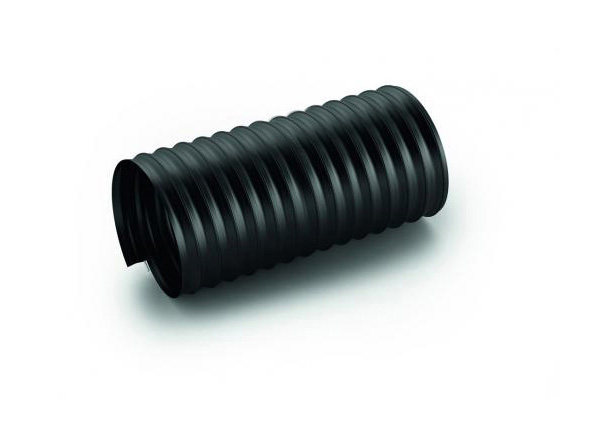

Superflex Pu Kz Dx Conduttivo

SKU: PVCHSE080

Polyurethane (PU) conductive hose with steel spiral covered with PU. Designed for both the suction and delivery of; materials in dust or granular form, liquids and vapours. Used on machines with ATEX regulation, where electrical conductivity is required.

Product Code:

PVCHSE080

Ø I.D.:

Ø O.D.:

Wall Thickness:

1 mm

Weight:

Bending Radius:

Vacuum 23°c:

Spiral Pitch:

Spiral Direction:

right

Ø Spiral:

Coil Length:

15 m

Product Code	Ø I.D.	Ø I.D.	Ø O.D.	Wall Thickness	Weight	Bending Radius	Vacuum 23°c	Spiral Pitch	Spiral Direction	Ø Spiral	Coil Length
PVCHSE080-01		40 mm	49 mm	1 mm	390 g/m	65 mm	6 m h2o	13 mm	right	1,4x2,0 mm	15 m
PVCHSE080-02	2 inch	50 mm	59 mm	1 mm	490 g/m	80 mm	5.0 m h2o	13 mm	right	1,4x2,0 mm	15 m
PVCHSE080-03		60 mm	69 mm	1 mm	590 g/m	100 mm	4 m h2o	13 mm	right	1,4x2,0 mm	15 m
PVCHSE080-04		70 mm	79 mm	1 mm	650 g/m	115 mm	3 m h2o	14 mm	right	1,4x2,0 mm	15 m
PVCHSE080-05	3 inch	76 mm	85 mm	1 mm	700 g/m	125 mm	2.5 m h2o	14 mm	right	1,4x2,0 mm	15 m
PVCHSE080-06		100 mm	110 mm	1 mm	860 g/m	160 mm	1 m h2o	16 mm	right	1,6x2,2 mm	15 m
