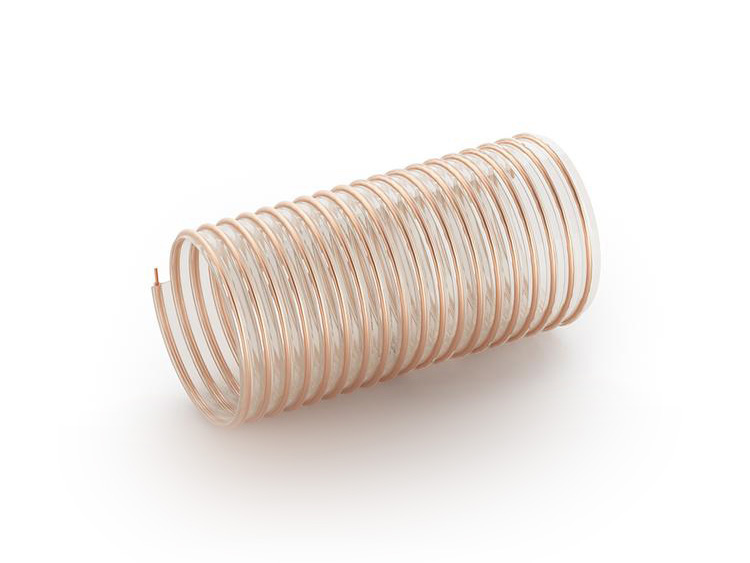

Superflex Pu Plus Hpr

SKU: PVCHSE081

Polyurethane (PU) hose with copper-plated steel spiral covered with PU. Designed for both the suction and transportation of abrasive materials. On demand from Ø 60 available in the self-extinguishing version according to DIN 4102-B1.

Product Code:	PVCHSE081
Ø I.D.:
Ø O.D.:
Wall Thickness:
Weight:
Bending Radius:
Working Pressure 1:3 23°C:
Vacuum 23°c:	9 m h2o
Spiral Pitch:
Spiral Direction:	left
Ø Spiral:
Coil Length:

Product Code:

PVCHSE081

Ø I.D.:

Ø O.D.:

Wall Thickness:

Weight:

Bending Radius:

Working Pressure 1:3 23°C:

Vacuum 23°c:

9 m h2o

Spiral Pitch:

Spiral Direction:

left

Ø Spiral:

Coil Length:

Product Code	Ø I.D.	Ø I.D.	Ø O.D.	Wall Thickness	Weight	Bending Radius	Working Pressure 1:3 23°C	Vacuum 23°c	Spiral Pitch	Spiral Direction	Ø Spiral	Coil Length
PVCHSE081-01	1 1/4 inch	32 mm	44 mm	2 mm	750 g/m	220 mm	4.5 bar	9 m h2o	10 mm	left	1,6x2 mm	20 m
PVCHSE081-02	1 1/2 inch	38 mm	50 mm	2 mm	850 g/m	250 mm	4 bar	9 m h2o	10 mm	left	1,6x2 mm	20 m
PVCHSE081-03		40 mm	52 mm	2 mm	900 g/m	260 mm	3.8 bar	9 m h2o	10 mm	left	1,8x2,2 mm	20 m
PVCHSE081-04	2 inch	50 mm	62 mm	2 mm	1100 g/m	300 mm	3.3 bar	9 m h2o	10 mm	left	1,8x2,2 mm	20 m
PVCHSE081-05		60 mm	72 mm	2 mm	1250 g/m	320 mm	2.8 bar	9 m h2o	10 mm	left	1,8x2,2 mm	20 m
PVCHSE081-06		65 mm	77 mm	2 mm	1350 g/m	350 mm	2.6 bar	9 m h2o	10 mm	left	1,8x2,2 mm	20 m
PVCHSE081-07		70 mm	82 mm	2 mm	1450 g/m	400 mm	2.4 bar	9 m h2o	10 mm	left	1,8x2,2 mm	20 m
PVCHSE081-08	3 inch	76 mm	88 mm	2 mm	1550 g/m	450 mm	2.2 bar	9 m h2o	10 mm	left	1,8x2,2 mm	20 m
PVCHSE081-09		80 mm	92 mm	2 mm	1650 g/m	500 mm	2.1 bar	9 m h2o	10 mm	left	1,8x2,2 mm	20 m
PVCHSE081-10	4 inch	102 mm	115 mm	2.2 mm	2450 g/m	580 mm	1.7 bar	9 m h2o	11 mm	left	2x2,5 mm	20 m
PVCHSE081-11		110 mm	123 mm	2.2 mm	2550 g/m	630 mm	1.5 bar	9 m h2o	11 mm	left	2x2,5 mm	15 m
PVCHSE081-12	5 inch	127 mm	140 mm	2.2 mm	2850 g/m	700 mm	1.4 bar	9 m h2o	11 mm	left	2x2,5 mm	15 m
PVCHSE081-13	6 inch	152 mm	165 mm	2.2 mm	3300 g/m	900 mm	1.2 bar	9 m h2o	11 mm	left	2x2,5 mm	15 m
PVCHSE081-14	8 inch	203 mm	217 mm	2.2 mm	5100 g/m	1200 mm	0.8 bar	9 m h2o	11 mm	left	2,5x3 mm	15 m
PVCHSE081-15	10 inch	254 mm	270 mm	2.5 mm	7800 g/m	1400 mm	0.7 bar	9 m h2o	12 mm	left	3x3,5 mm	-
PVCHSE081-16	12 inch	305 mm	320 mm	2.5 mm	9000 g/m	1600 mm	0.6 bar	9 m h2o	12 mm	left	3x3,5 mm	-
