Superflex Pu R

SKU: PVCHSE074

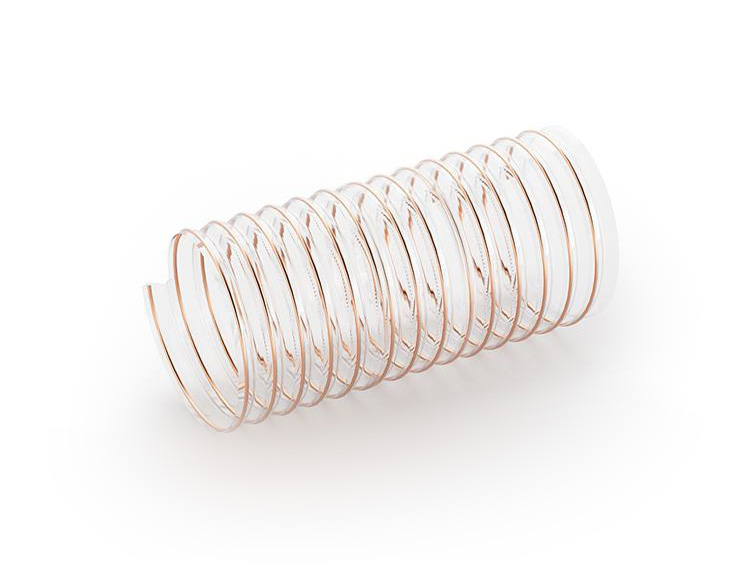

Polyurethane (PU) hose with copper-plated steel spiral. Designed for both the suction and transportation of dusts, chips and abrasive material. On demand from Ø 60 available in the self-extinguishing version according to DIN 4102-B1.

Product Code:

PVCHSE074

Ø I.D.:

Ø O.D.:

Wall Thickness:

Weight:

Bending Radius:

Working Pressure 1:3 23°C:

Vacuum 23°c:

Spiral Pitch:

Spiral Direction:

left

Ø Spiral:

Coil Length:

Product Code	Ø I.D.	Ø I.D.	Ø O.D.	Wall Thickness	Weight	Bending Radius	Working Pressure 1:3 23°C	Vacuum 23°c	Spiral Pitch	Spiral Direction	Ø Spiral	Coil Length
PVCHSE074-01		30 mm	35 mm	0.5 mm	140 g/m	30 mm	2 bar	5.5 m h2o	10 mm	left	1 mm	30 m
PVCHSE074-02		35 mm	40 mm	0.5 mm	160 g/m	35 mm	1.8 bar	5 m h2o	10 mm	left	1 mm	30 m
PVCHSE074-03	1 1/2 inch	38 mm	43 mm	0.5 mm	180 g/m	38 mm	1.5 bar	4.8 m h2o	10 mm	left	1 mm	30 m
PVCHSE074-04		40 mm	45 mm	0.5 mm	200 g/m	40 mm	1.4 bar	4.5 m h2o	10 mm	left	1 mm	30 m
PVCHSE074-05	1 3/4 inch	45 mm	50 mm	0.5 mm	220 g/m	45 mm	1.3 bar	4 m h2o	10 mm	left	1 mm	30 m
PVCHSE074-06	2 inch	50 mm	55 mm	0.55 mm	280 g/m	50 mm	1.2 bar	3.5 m h2o	12 mm	left	1.2 mm	30 m
PVCHSE074-07		55 mm	60 mm	0.55 mm	300 g/m	55 mm	1.1 bar	3 m h2o	12 mm	left	1.2 mm	30 m
PVCHSE074-08		60 mm	65 mm	0.55 mm	330 g/m	60 mm	1 bar	3 m h2o	12 mm	left	1.2 mm	30 m
PVCHSE074-09	2 1/2 inch	63 mm	68 mm	0.55 mm	350 g/m	63 mm	0.9 bar	2.5 m h2o	12 mm	left	1.2 mm	30 m
PVCHSE074-10		70 mm	77 mm	0.6 mm	420 g/m	70 mm	0.8 bar	2.5 m h2o	14 mm	left	1.4 mm	30 m
PVCHSE074-11		75 mm	82 mm	0.6 mm	440 g/m	75 mm	0.8 bar	2 m h2o	14 mm	left	1.4 mm	30 m
PVCHSE074-12		80 mm	87 mm	0.6 mm	480 g/m	80 mm	0.7 bar	2 m h2o	14 mm	left	1.4 mm	30 m
PVCHSE074-13	3 1/2 inch	90 mm	97 mm	0.6 mm	520 g/m	90 mm	0.7 bar	2 m h2o	14 mm	left	1.4 mm	30 m
PVCHSE074-14		100 mm	107 mm	0.65 mm	660 g/m	100 mm	0.6 bar	1.5 m h2o	16 mm	left	1.6 mm	30 m
PVCHSE074-15		110 mm	117 mm	0.65 mm	720 g/m	110 mm	0.6 bar	1.5 m h2o	16 mm	left	1.6 mm	30 m
PVCHSE074-16		120 mm	127 mm	0.65 mm	780 g/m	120 mm	0.5 bar	1.5 m h2o	16 mm	left	1.6 mm	30 m
PVCHSE074-17		125 mm	132 mm	0.65 mm	800 g/m	125 mm	0.5 bar	1.5 m h2o	16 mm	left	1.6 mm	30 m
PVCHSE074-18		128 mm	135 mm	0.65 mm	820 g/m	128 mm	0.5 bar	1.5 m h2o	16 mm	left	1.6 mm	30 m
PVCHSE074-19		130 mm	137 mm	0.65 mm	840 g/m	130 mm	0.5 bar	1.5 m h2o	16 mm	left	1.6 mm	30 m
PVCHSE074-20		140 mm	147 mm	0.65 mm	900 g/m	140 mm	0.5 bar	1.5 m h2o	16 mm	left	1.6 mm	30 m
PVCHSE074-21		150 mm	157 mm	0.7 mm	1100 g/m	150 mm	0.4 bar	1 m h2o	18 mm	left	1.8 mm	30 m
PVCHSE074-22		160 mm	167 mm	0.7 mm	1160 g/m	160 mm	0.4 bar	1 m h2o	18 mm	left	1.8 mm	30 m
PVCHSE074-23		170 mm	177 mm	0.7 mm	1240 g/m	170 mm	0.4 bar	1 m h2o	18 mm	left	1.8 mm	30 m
PVCHSE074-24		173 mm	179 mm	0.7 mm	1250 g/m	173 mm	0.4 bar	1 m h2o	18 mm	left	1.8 mm	30 m
PVCHSE074-25		180 mm	187 mm	0.7 mm	1300 g/m	180 mm	0.4 bar	1 m h2o	18 mm	left	1.8 mm	30 m
PVCHSE074-26		200 mm	207 mm	0.7 mm	1440 g/m	200 mm	0.3 bar	1 m h2o	18 mm	left	1.8 mm	30 m
PVCHSE074-27		220 mm	227 mm	0.7 mm	1580 g/m	220 mm	0.3 bar	0.5 m h2o	18 mm	left	1.8 mm	15 m
PVCHSE074-28		227 mm	235 mm	0.7 mm	1700 g/m	227 mm	0.3 bar	0.5 m h2o	18 mm	left	1.8 mm	15 m
PVCHSE074-29		250 mm	259 mm	0.8 mm	1880 g/m	250 mm	0.2 bar	0.5 m h2o	22 mm	left	2 mm	15 m
PVCHSE074-30		280 mm	289 mm	0.8 mm	2100 g/m	280 mm	0.2 bar	0.5 m h2o	22 mm	left	2 mm	15 m
PVCHSE074-31		300 mm	309 mm	0.8 mm	2250 g/m	300 mm	0.2 bar	0.4 m h2o	22 mm	left	2 mm	15 m
PVCHSE074-32		325 mm	334 mm	0.8 mm	2450 g/m	325 mm	0.2 bar	0.4 m h2o	22 mm	left	2 mm	15 m
PVCHSE074-33		350 mm	359 mm	0.8 mm	2600 g/m	350 mm	0.1 bar	0.4 m h2o	22 mm	left	2 mm	15 m
PVCHSE074-34		400 mm	409 mm	0.8 mm	3000 g/m	400 mm	0.1 bar	0.4 m h2o	22 mm	left	2 mm	15 m
